MEMS Matrix Switch Modules

MEMS Optical Matrix Switch Module is built with DiCon’s proprietary MEMS technology. Each module contains 2 sets of MEMS mirrors for making 1-to-1 connections between input and output ports. The MEMS mirrors are held in position using precisely calibrated voltages and require no feedback control. This unique quality enables the switch to maintain stable connections and allows the device to function when there is no light in the fiber. This innovative platform has an outstanding track record and delivers best-in-class optical performance

  • Proven MEMS technology
  • Lifetime > 109 switch cycles
  • No dithering or active alignment artifacts
  • Switches and holds dark fiber connections
  • Low insertion loss with excellent stability
  • Compact and lightweight
  • Asymmetric MxN available

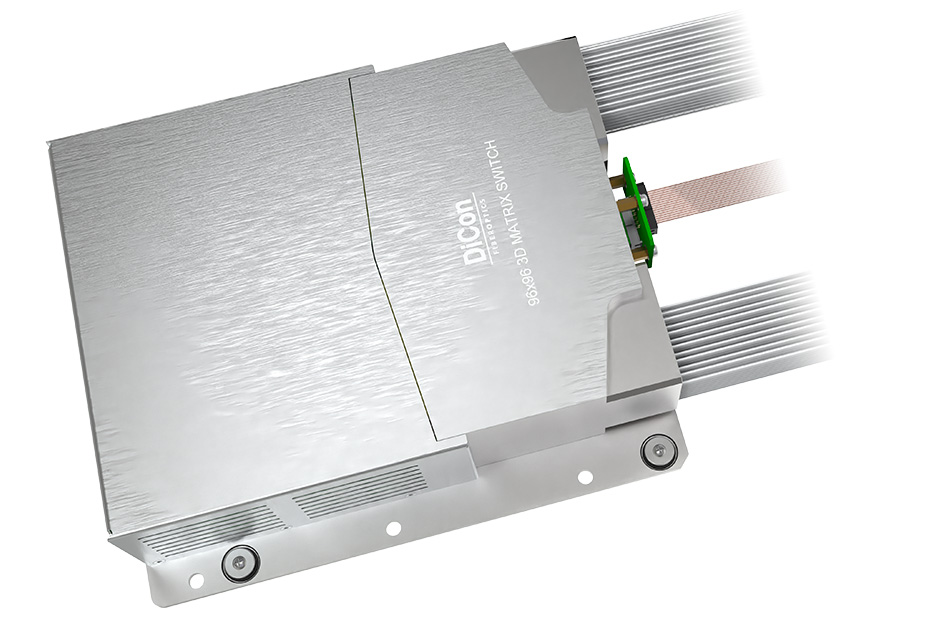

3D MEMS Non-Blocking

Matrix Switch Modules

DiCon MEMS Matrix Switch Modules

Single-Mode
(SM) Fiber

Polarization-Maintaining
(PM) Fiber

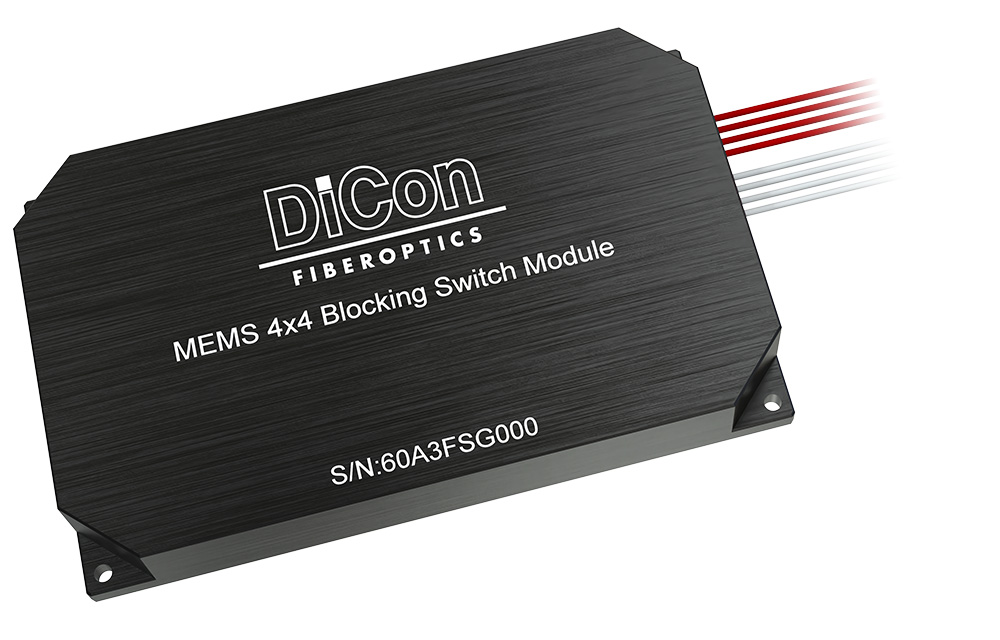

MEMS MxN Blocking

Switch Modules

DiCon MEMS Matrix Switch Modules

Single-Mode (SM) Fiber

  • MS2-4x4B Contact Us
  • MS2-8x8B Contact Us
  • MS2-12x12B Contact Us

Multi-Mode (MM) Fiber

  • MS2-4x4B [50µ] Contact Us
  • MS2-8x8B [50µ] Contact Us
  • MS2-12x12B [50µ] Contact Us

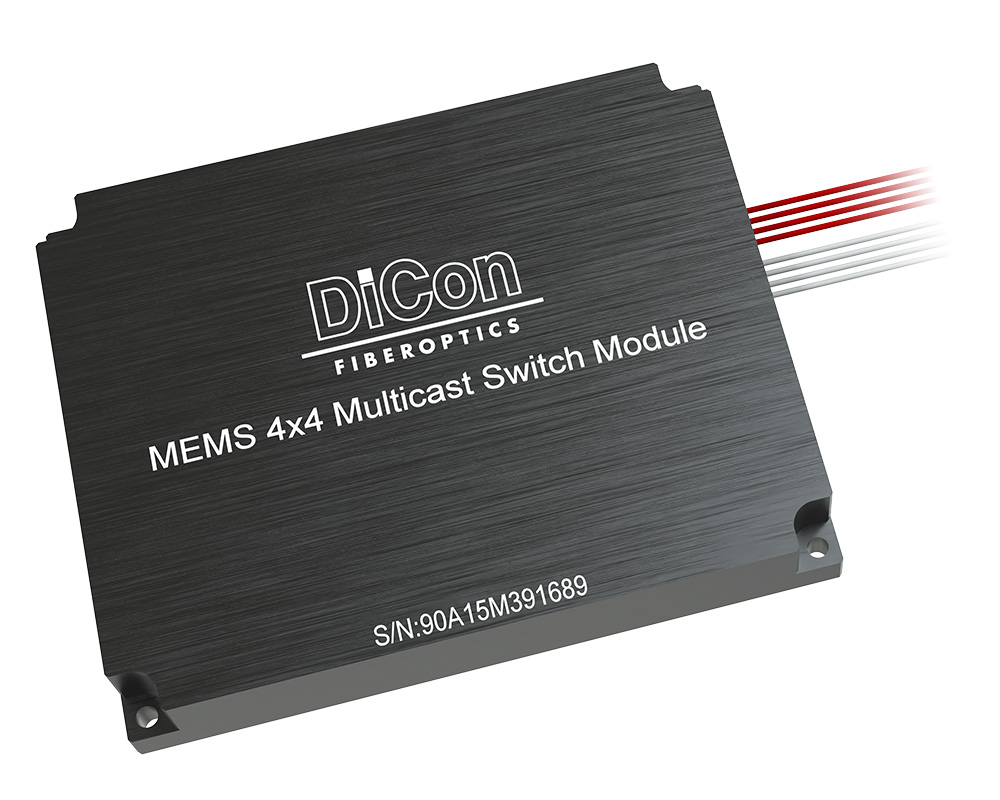

MEMS MxN Multicast

Matrix Switch Modules

DiCon MEMS Matrix Switch Modules

Single-Mode (SM) Fiber

Multi-Mode (MM) Fiber

  • MSS-4x4 [50µ] Contact Us
  • MSS-8x16/D [50µ] Contact Us
