DiCon's GP series photonics systems provide seamless control and automation for a wide range of
optical components, including MEMS optical switches, variable optical attenuators, tunable filters, tap
detectors, circulators, and more. These components can be customized to best align with the
application’s requirements. The GP systems are built with a focus on high optical performance and
repeatability, delivering precise and reliable automated testing as well as efficient fiber monitoring
capabilities. With DiCon's GP series, you can confidently achieve accurate and effective automation for
your testing and fiber monitoring needs.
Interfaces: LAN, Serial, WEB GUI
Available with Singlemode, multimode or PM fiber types
Variety of wavelength options: visible, 780, 850, 1064, 1260-1680 nm, etc.

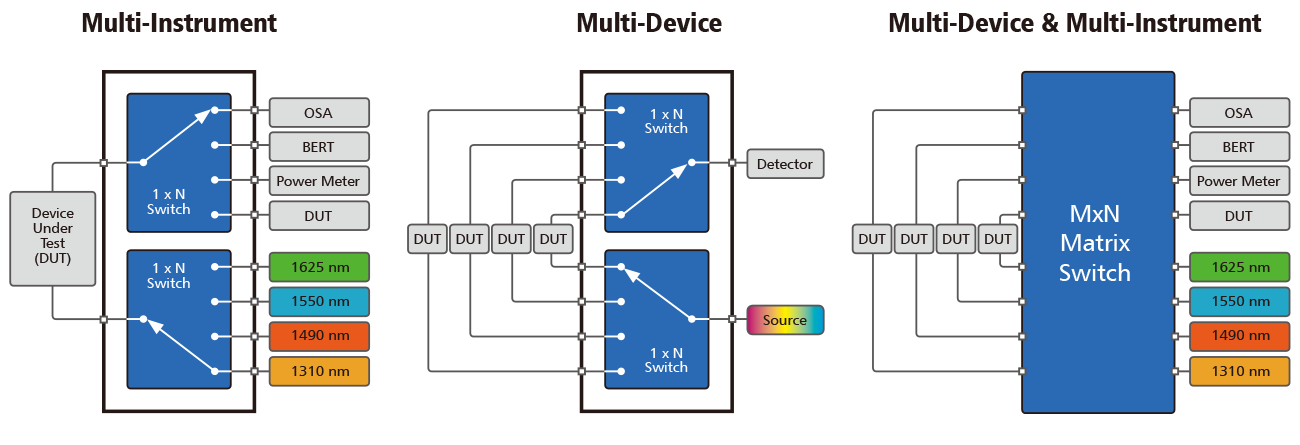

Common Testing Application
GP850
Modular Platform

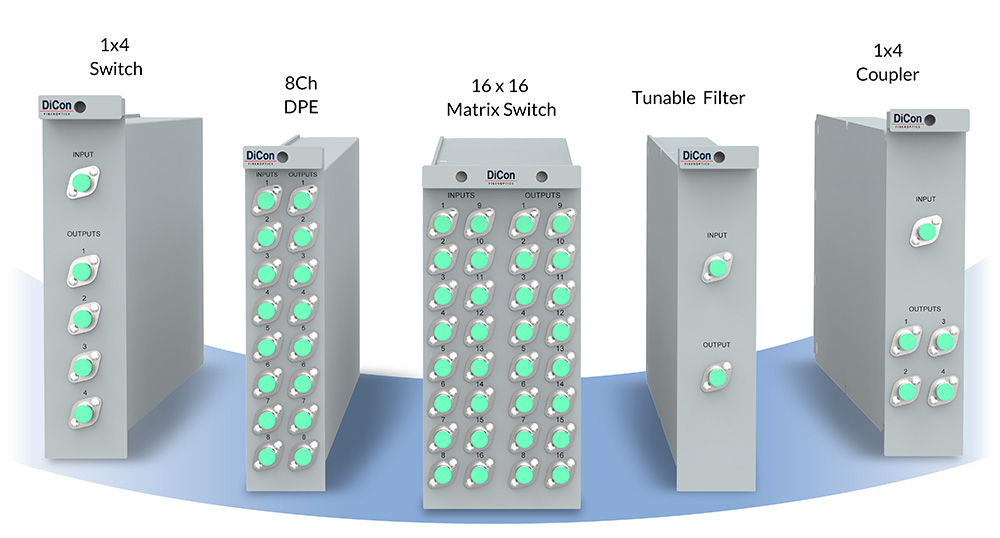

DiCon’s GP850 is a flexible, modular rackmount system designed to automate fiber optic testing. Up to eight plug-and-play slot cards containing various devices such as switches, VOAs, tunable filters, etc.. can be added or changed as test requirements change. The devices on and configuration of the slot cards can also be customized. An additional expansion chassis can increase the total slots to sixteen. Full control is simple and intuitive through a single interface.

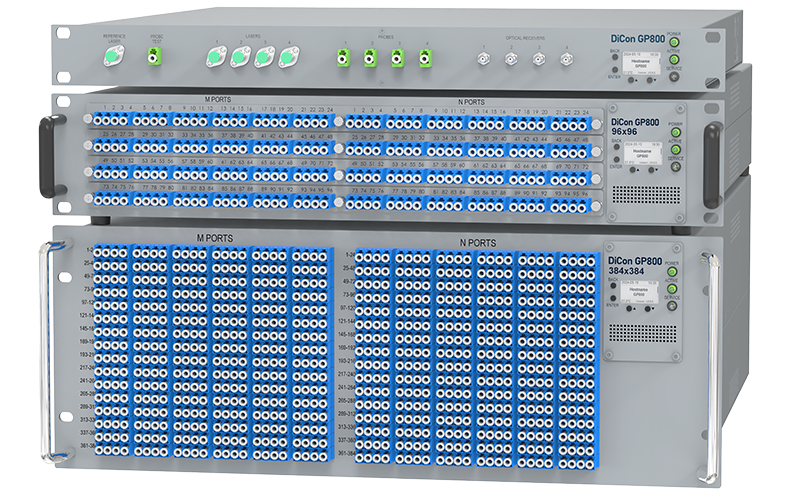

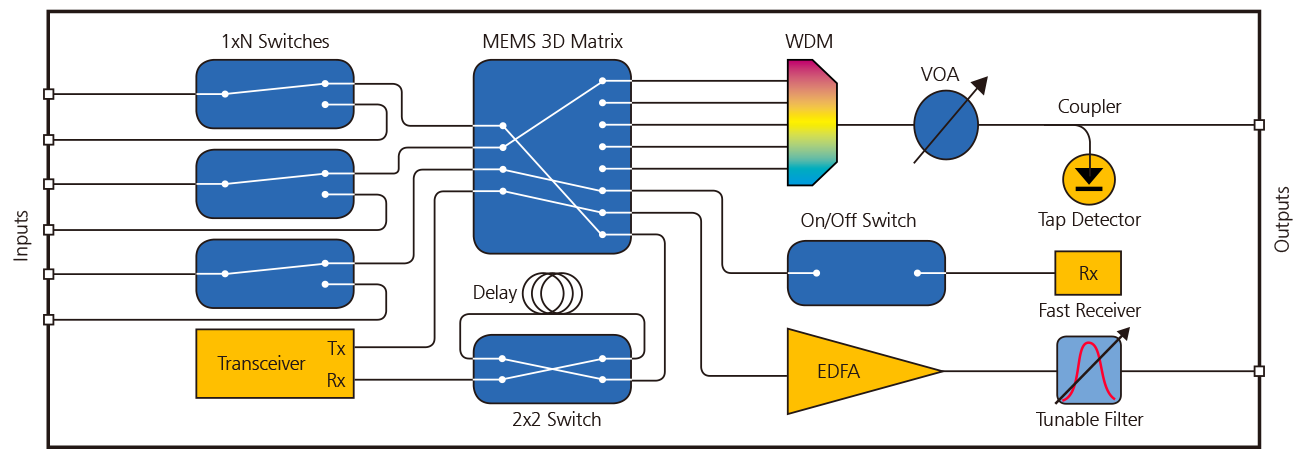

DiCon’s GP800 is a “General Purpose” platform which can be customized to connect a variety of fiber optic components together and controlled under a single interface. Multiple chassis options are offered and expansion units can be linked and controlled by the master unit.
