Dynamic Power Equalizer Plug-In

DiCon's Dynamic Power Equalizer (DPE) Plug-In maintains the output optical power at a preset level by continuously adjusting the attenuation through a closed loop controlled attenuator. The Plug-in is design for easy installation into DiCon's GP700M Modular Mainframe.

Applications:

DPE Plug-In can be used in a broad range of optical power management applications, including channel balancing and matching, the testing of optical system dynamic range, and the limiting of optical power at the inputs of sensitive test and measurement equipment.


Housing Dimensions:




Units: mm

Features:

  • Integrated functions
  • Low insertion loss
  • Precise resolution
  • Excellent repeatability
  • Wide attenuation range
  • Low back reflection

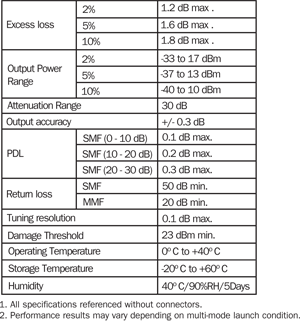

Optical Specifications1 :


SCD 0127 Rev A
