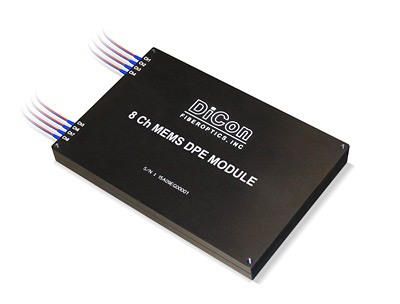

Multi-Channel MEMS DPE Module

DiCon’s MEMS Dynamic Power Equalizer (DPE) compensates for deviations in input optical power and maintains output optical power at a preset level for up to eight fi ber channels. The DPE continuously adjusts the attenuation through closed loop feedback from output taps to DiCon’s MEMS based attenuators.

Features:

  • Proven MEMS Durability and Reliability
  • Compact Form Factor
  • Excellent Output Accuracy
  • Wide Attenuation Range
  • Low Insertion Loss

Applications:

  • Optical Communications
  • Fiber Sensing
  • Bio-medical Instrumentation

Electrical Specifications:

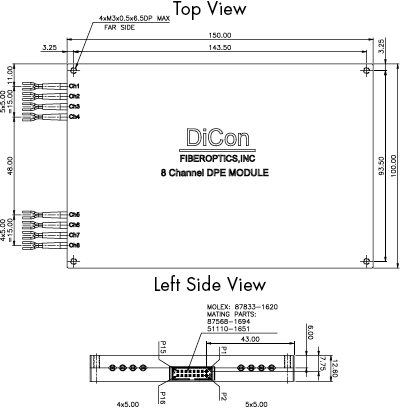

Housing Dimensions (units in mm):

Units: mm


Optical Specifications:

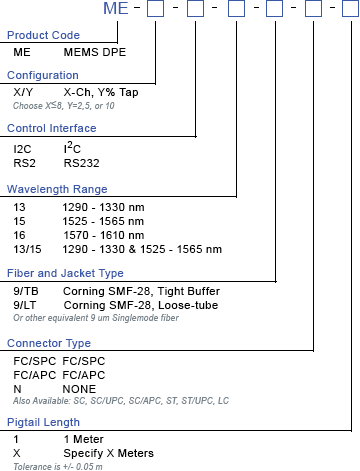

Ordering Information:

SCD 0132 Rev B
