MEMS NxN Non-Blocking Matrix Optical Switches



Index - Switches

MEMS 8x8 Matrix Optical Switch

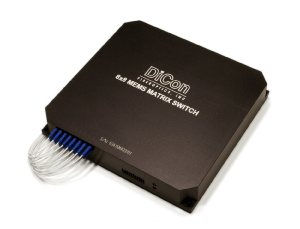

DiCon’s MEMS 8x8 is an integrated switch module based on DiCon’s MEMS 1x8 Optical Switch components. Sixteen MEMS 1x8 switches, eight for inputs and the other eight for outputs, are interconnected to form a fully non-blocking, two stage, optical cross-connect. Under this matrix switch platform, different MEMS 1xN switches can be used to form customized MxN Optical Switch Matrices.

Applications

The MEMS 8x8 Matrix is used in an optical network to dynamically configure the system. Mounting to any network card is easily achieved with its small form factor and 1” thickness. For Test and Measurement applications, the matrix switch is a simplified alternative solution for fiber management and allows users to share resources.

Electrical


Housing Dimensions



Features

  • Compact form-factor
  • Low insertion loss with minimal crosstalk
  • Fast switching time
  • Low power consumption
  • MEMS durability and reliability
  • Available in other customized configurations

Optical Specifications


Ordering Information


SCD 0129 Rev C
