MEMS On-Off Optical Switch

DiCon's MEMS On-Off Optical Switch has one input and one output fi ber and provides the ability to turn on or off the optical signal passing through it. These fi ber optic switches are compact cylindrical devices driven by a direct analog voltage and are intended to be integrated into a larger optical system.

Applications

  • Lifetime > 1 Billion Switch Cycles
  • Proven MEMS Technology
  • Qualifi ed to GR-1221
  • High Reliabili

MEMS On/Off Optical Switch

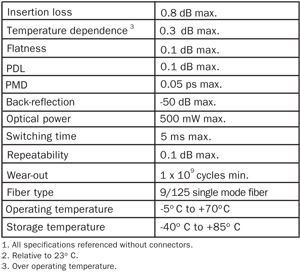

Optical Specifications 1

PARAMETER RATING
Insertion Loss2 0.8 dB max.
Crosstalk -50 dB max.
TDL 0.30 dB max.
WDL3 0.10 dB max.
PDL 0.10 dB max.
Repeatability4 0.05 dB max.
Optical Power 500 mW max.
Durability 109 cycles min.
Switching Time 5 ms max.
Operating Temp -5 to 70°C
Storage Temp -40 to 85°C
Fiber Type 9/125 µm single mode

1. Specifications are without connectors.
2. IL is measured at CWL, 23°C. In "ON" State.
3. WDL is measured in a +/- 20nm range at 23°C.
4. Repeatability is defined after 100 cycles.

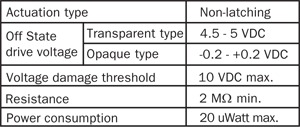

Electrical Specifications

PARAMETER RATING
Latching Type non-latching
Off State
Drive Voltage
Transparent Type 4.5 - 5 VDC
Opaque Type 0 +/- 0.2 VDC
Power Consumption
20 µW max.
Vcc Damage Threshold 10 VDC

Housing Dimensions

Features

  • Lifetime > 1 Billion Switch Cycles
  • Proven MEMS Technology
  • Qualifi ed to GR-1221
  • High Reliability

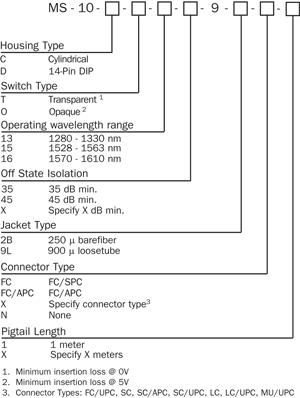

Ordering Information

SCD 0046 Rev E
