WDM/ Detector

DiCon’s WDM/Detector is a hybrid component that integrates a WDM with a high sensitivity PIN photodiode for power monitoring applications. Hybrid WDM/Detectors minimize integration costs and module size by combining two functions in one package.

Applications:

WDM/Detectors are designed for power monitoring in WDM systems. WDM/Detectors eliminate the need for splicing together separate WDMs and pigtailed photodiodes.

Housing Dimensions


Units: mm
1. Optional 13 mm PIN length by request.

Specifications



Features:

  • Ultra-flat, broadband spectral response
  • Integrates WDM and power monitoring functions
  • Available as single component or array module
  • Low insertion loss

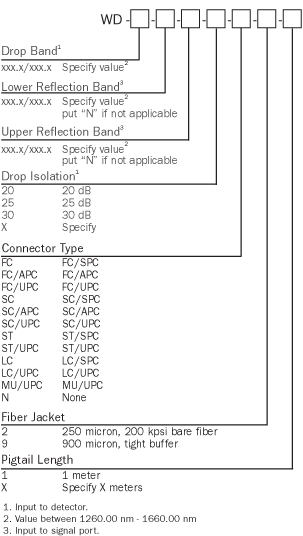

Ordering Information


SCD 0017 Rev B( Page : 43 )
